CPT-DAJ - Isolated JTAG/UART USB

CPT-DAJ

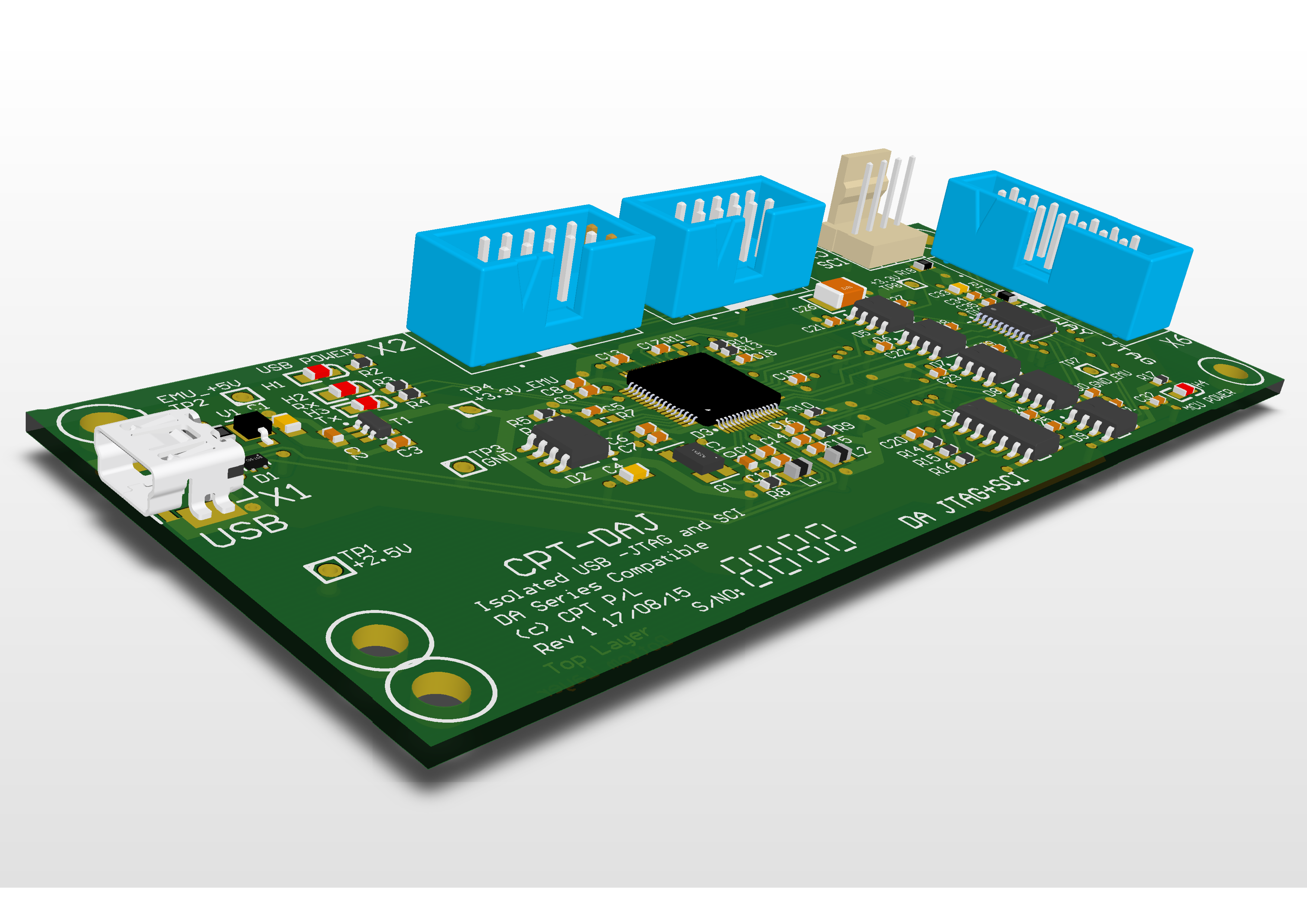

The CPT-DAJ is a Communications Peripheral card within the DA Series Range with an isolated JTAG and Serial Communications Interface (SCI)/UART. It provides an isolated USB interface for a Texas Instruments based microcontroller (MCU), as found on CPT’s DA Series Control Cards. The JTAG Emulator within the CPT-DAJ is the XDS100 V2. The card uses the same interfacing circuitry and EEPROM as Texas Instruments' own controlCARD series.

The card requires a powered USB connection for the isolated USB side to operate.

The CPT-DAJ card mounts over the DA controller card using the DA Series 14-way JTAG Interface for communication with the DA Series Control Card.

In addition the CPT-DAJ contains an LVTTL UART interface compatible with the DA Series cards (CPT-COM-U equivalent).

Technical Specifications



  • On-card facilities include:
    • Isolated JTAG Emulation (XDS100V2 emulator)
    • Isolation Interface (ISO7220CD)
    • ESD Protection on USB signals
    • EEPROM with Texas Instruments JTAG Emulator Definitions
    • 14-way socket JTAG Interface
    • DA Series compatible footprint
    • 4-way SCI header for compatibility with CPT’s 4-pin serial communications
    • Mini-USB PC Interface
    • Code Composer Studio compatible without additional hardware
  • Dimensions:
      • 110mm x 46.75mm (4.33" x 1.84")



Ordering Codes



Base Part Number
Standard Model CPT-DAJ-2810 DA Series - Plug-in for CPT-DA2810
Optional CPT-DAJ-28035 DA Series - Plug-in for CPT-DA28035
CPT-DAJ-TLDA Series with Top Load headers

Please contact Creative Power for pricing and availability.
