Overview
Texas Instruments have developed a range of DSP products designed
specifically for digital motor/motion control.
CPT has developed circuit boards based around two of these
DSPs, the TMS320F240 and the TMS320F2810.
The TMS320F2810 DSP based controller cards are CPT's newest range of controllers and are available in several forms: standalone controller, (CPT-E13), (CPT-E01), (CPT-R09), or plug-in basic controller (CPT-DA2810)
Board Overviews

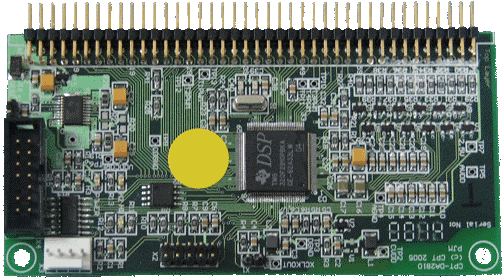

CPT-DA2810
A 4 layer DSP controller card which provides basic on-board functionality
and is designed to interface to customised motherboards.
The card operates from a single +5VDC supply.
Board Dimensions: 110mm x 55mm
Available Peripherals: CPT-COM, CPT-DATS, CPT-Mini2810, CPT-E03, CPT-E21, CPT-W03, CPT-W04
CPT-E13
The CPT-E13 is a low cost, high performance DSP based inverter controller that has been designed for applications requiring a single board solution to control up to a four-phase VSI stack.
The card operates from a single +24VDC supply.
Board Dimensions: 275mm x 220mm
Available Peripherals: CPT-E46 - Optically Isolated Voltage Measurement Board
CPT-R09
A 4 layer DSP controller card with customised peripheral interfaces.
Includes a USB serial port, generic gate driver and analog input connectors.
The card operates from a single +12VDC supply.
Board Dimensions: 150mm x 115mm
Available Peripherals: CPT-COM, CPT-R10
CPT-E01
A 4 layer DSP controller card with on-card SMPS, conditioned analogs,
digital I/O, communications, and gate drivers.
The card operates from a single +24VDC supply
Board Dimensions: 213mm x 180mm
Available Peripherals: CPT-COM, CPT-E02, CPT-E10
Contact CPT for more
details on the available peripheral boards.
